Localized PWHT and Thermal Control

The applicable construction code, material specification and customer requirements establish whether PWHT is required and the permitted treatment conditions. ASME Section IX addresses the qualification implications of thermal treatment; it does not replace the construction code's production PWHT requirements.

Holding temperature, soak duration, heating rate and cooling rate must be selected together. The temperature must provide the required stress relief or tempering response without exceeding limits that could adversely affect the material. For quenched and tempered alloys, prior heat treatment and required final strength need particular attention.

Soak time is determined from the applicable rules and the defined controlling thickness or geometry. It should not be advertised as one universal time per inch for every material. The procedure must also specify when the hold starts and how the required metal temperatures are verified.

Heating and cooling rate limits help control thermal gradients, distortion and induced stresses. During a conventional subcritical PWHT cycle, cooling concerns should not be described as if every cycle involves quenching or phase transformation. HCR evaluates the intended treatment against the material condition and the required final properties.

A local PWHT procedure needs an engineered heating arrangement. The weld and required adjacent material form the soak region. The heated band, gradient control region and insulation extent must be defined from the applicable requirements and component configuration, rather than chosen only for installation convenience.

Thermocouple locations are selected to evaluate expected hot and cold areas around the weld and through the relevant geometry. Control channels regulate individual heating zones; monitoring channels provide additional temperature evidence. The arrangement must avoid overheating while ensuring the required region reaches the minimum treatment temperature. Control thermocouples should not be prescribed at the coldest location as a universal rule.

The procedure identifies thermocouple attachment methods, channel numbering, heating zones, insulation, equipment, calibration requirements, treatment limits and acceptance criteria. Nozzles, branches, thick sections and changes in section may require additional monitoring or a different heating plan.

HCR also defines the response to power interruptions, failed channels or temperature excursions. These instructions help the technician preserve the record and obtain the required disposition before treatment continues or is repeated.

The time and temperature record is the primary evidence of the treatment cycle. It should identify the component, treatment date, recording channels and actual temperatures throughout heating, holding and controlled cooling. Calibration records and a thermocouple location sketch connect each recorded channel with the metal temperature it represents.

Thermocouples require secure attachment using a method appropriate to the component and approved procedure. Where attachment welding is used, the procedure should address material suitability and any removal or surface restoration requirements. Loose contact or a failed attachment can produce a misleading temperature record.

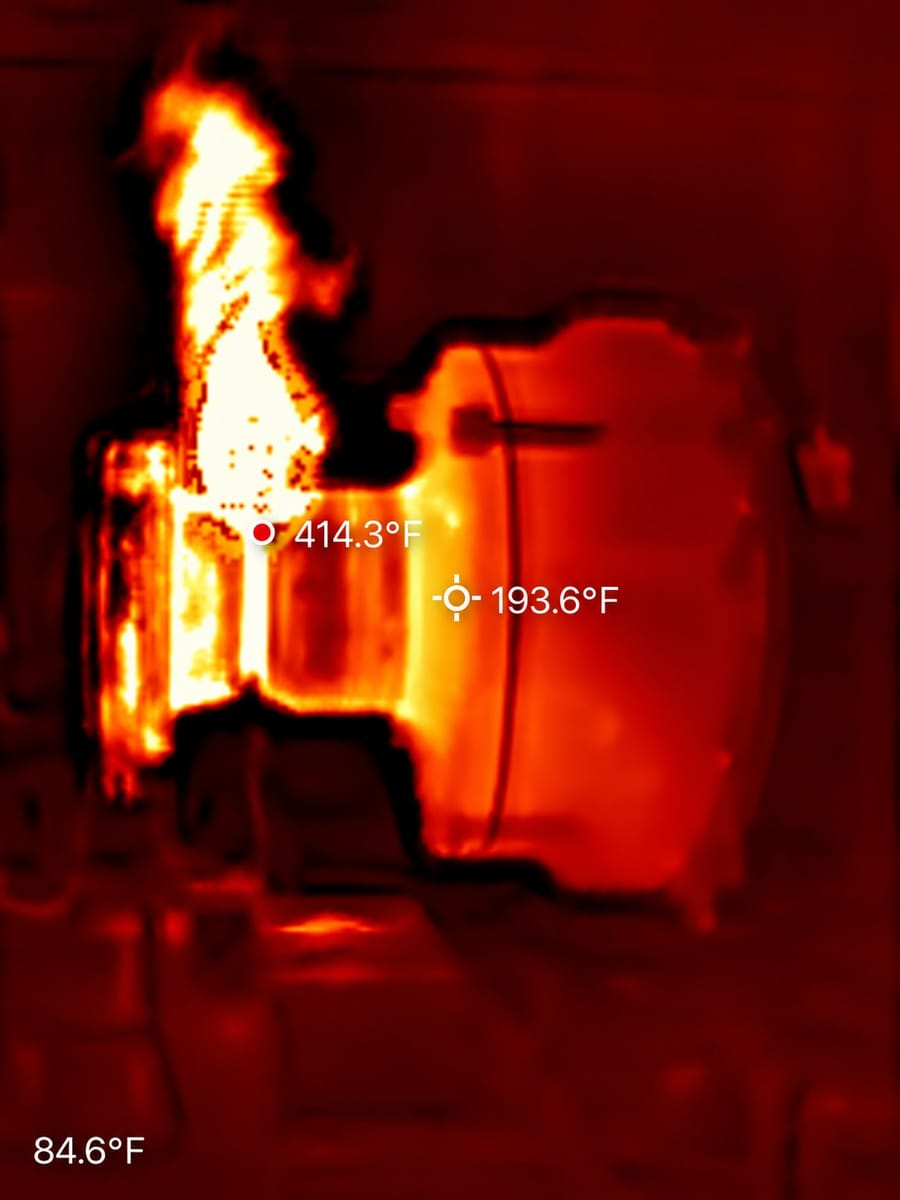

Thermal imaging can provide a supplementary view of accessible surfaces, helping identify uneven heating or insulation problems. It does not replace attached thermocouples or demonstrate the temperature beneath insulation or through the full wall. Emissivity, reflected radiation and sight lines affect the readings.

HCR reviews the available thermal evidence against the approved cycle and documents deviations requiring engineering disposition. A visually smooth chart alone is not proof that every treatment requirement was satisfied.

Localized PWHT can be appropriate for field welds, piping and components that are impractical to transport or heat as a whole, provided the governing requirements permit the method and the heating arrangement controls gradients and restraint.

Furnace treatment may be more suitable when the component requires whole assembly heating or when local gradients, geometry and restraint cannot be managed adequately. Neither method guarantees uniform temperature without suitable instrumentation and control.

HCR's localized treatment capacity extends to pipe of 42 inch outside diameter. Diameter alone does not establish that a setup is suitable: wall thickness, material, joint configuration, access for the heating arrangement and insulation, and the required cycle are reviewed for each component.

The choice depends on the code, material, dimensions, configuration and required properties. HCR reviews the proposed local setup before execution and identifies when another treatment arrangement is needed.

The agreed documentation package includes the treatment procedure, component identification, thermocouple location map, time and temperature records, relevant equipment calibration information and a final treatment report with the required sign off.

The report connects the specified cycle with the recorded cycle. It identifies the treatment conditions, channel locations, hold interval, observed deviations and acceptance or disposition. If the record is incomplete or a required limit was exceeded, that condition must remain visible in the package.

Clear traceability helps the customer review the work and incorporate the record into its fabrication or repair dossier. HCR's treatment documentation supports project acceptance; it does not substitute for any approval reserved to the customer, inspector or responsible organization.
